irf堆叠网络冗余问题求解

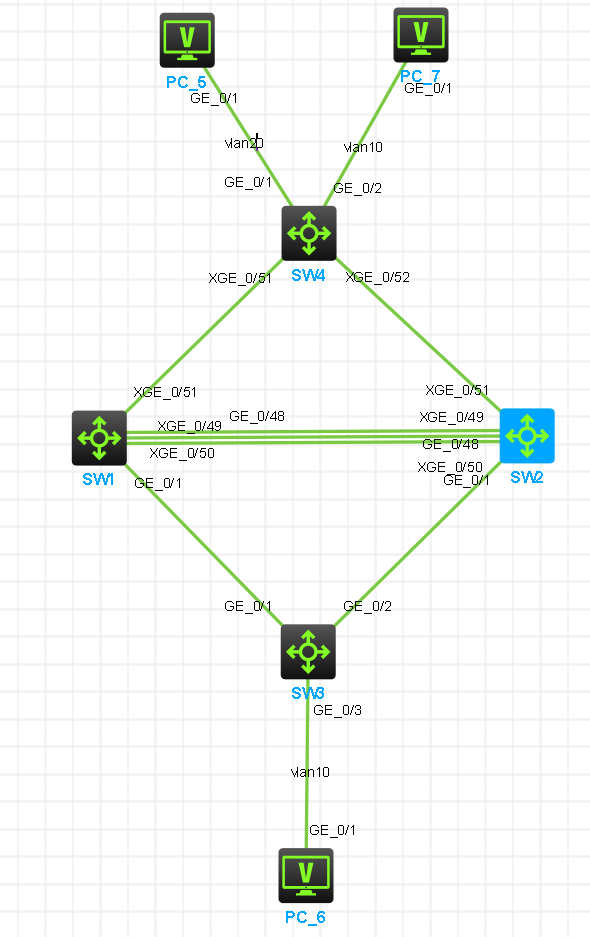

H3C Cloud Lab 软件中调试irf堆叠功能，完成整个配置后测试网络冗余，操作步骤如下：

1、PC5或PC7持续ping PC6，此时网络都是正常的；

2、强行关闭irf主交换机网络，此时PC5或PC7持续ping PC6会中断大约30S后才会恢复网络。

请问如何设置让网络不会出现中断。

谢谢！





交换机配置：

#

 version 7.1.070, Alpha 7170

#

 sysname SW1

#

 irf domain 10

 irf mac-address persistent timer

 irf auto-update enable

 undo irf link-delay

 irf member 1 priority 32

 irf member 2 priority 1

#

ospf 1 router-id 1.1.1.1

 area 0.0.0.0

  network 192.168.0.0 0.0.255.255

 area 0.0.0.1

#

 lldp global enable

#

 system-working-mode standard

 xbar load-single

 password-recovery enable

 lpu-type f-series

#

vlan 1

#

vlan 10

#

vlan 20

#

vlan 500

#

irf-port 1/2

 port group interface Ten-GigabitEthernet1/0/49

 port group interface Ten-GigabitEthernet1/0/50

#

irf-port 2/1

 port group interface Ten-GigabitEthernet2/0/49

 port group interface Ten-GigabitEthernet2/0/50

#

interface Bridge-Aggregation1

 port link-type trunk

 port trunk permit vlan 1 10

 link-aggregation mode dynamic

#

interface Bridge-Aggregation2

 port link-type trunk

 port trunk permit vlan 1 10 20

 link-aggregation mode dynamic

#

interface NULL0

#

interface LoopBack0

 ip address 2.2.2.2 255.255.255.255

#

interface Vlan-interface10

 ip address 192.168.10.254 255.255.255.0

#

interface Vlan-interface20

 ip address 192.168.20.254 255.255.255.0

#

interface Vlan-interface500

 mad bfd enable

 mad ip address 192.168.2.1 255.255.255.0 member 1

 mad ip address 192.168.2.2 255.255.255.0 member 2

#

interface FortyGigE1/0/53

 port link-mode bridge

#

interface FortyGigE1/0/54

 port link-mode bridge

#

interface FortyGigE2/0/53

 port link-mode bridge

#

interface FortyGigE2/0/54

 port link-mode bridge

#

interface GigabitEthernet1/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 10

 combo enable fiber

 port link-aggregation group 1

#

interface GigabitEthernet1/0/2

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/3

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/4

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/5

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/6

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/7

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/8

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/9

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/10

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/11

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/12

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/13

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/14

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/15

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/16

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/17

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/18

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/19

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/20

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/21

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/22

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/23

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/24

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/25

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/26

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/27

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/28

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/29

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/30

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/31

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/32

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/33

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/34

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/35

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/36

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/37

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/38

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/39

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/40

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/41

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/42

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/43

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/44

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/45

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/46

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet1/0/47

 port link-mode bridge

 combo enable fiber

 shutdown

#

interface GigabitEthernet1/0/48

 port link-mode bridge

 port access vlan 500

 combo enable fiber

 undo stp enable

#

interface GigabitEthernet2/0/1

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 10

 combo enable fiber

 port link-aggregation group 1

#

interface GigabitEthernet2/0/2

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/3

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/4

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/5

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/6

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/7

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/8

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/9

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/10

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/11

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/12

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/13

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/14

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/15

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/16

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/17

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/18

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/19

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/20

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/21

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/22

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/23

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/24

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/25

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/26

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/27

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/28

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/29

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/30

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/31

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/32

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/33

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/34

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/35

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/36

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/37

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/38

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/39

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/40

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/41

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/42

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/43

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/44

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/45

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/46

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/47

 port link-mode bridge

 combo enable fiber

#

interface GigabitEthernet2/0/48

 port link-mode bridge

 port access vlan 500

 combo enable fiber

 undo stp enable

#

interface M-GigabitEthernet0/0/0

#

interface Ten-GigabitEthernet1/0/51

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 10 20

 combo enable fiber

 port link-aggregation group 2

#

interface Ten-GigabitEthernet1/0/52

 port link-mode bridge

 combo enable fiber

#

interface Ten-GigabitEthernet2/0/51

 port link-mode bridge

 port link-type trunk

 port trunk permit vlan 1 10 20

 combo enable fiber

 port link-aggregation group 2

#

interface Ten-GigabitEthernet2/0/52

 port link-mode bridge

 combo enable fiber

#

interface Ten-GigabitEthernet1/0/49

 combo enable fiber

#

interface Ten-GigabitEthernet1/0/50

 combo enable fiber

#

interface Ten-GigabitEthernet2/0/49

 combo enable fiber

#

interface Ten-GigabitEthernet2/0/50

 combo enable fiber

#

 scheduler logfile size 16

#

line class aux

 user-role network-operator

#

line class console

 user-role network-admin

#

line class tty

 user-role network-operator

#

line class vty

 user-role network-operator

#

line aux 0 1

 user-role network-operator

#

line con 0 1

 user-role network-admin

#

line vty 0 63

 user-role network-operator

#

radius scheme system

 user-name-format without-domain

#

domain system

#

 domain default enable system

#

role name level-0

 description Predefined level-0 role

#

role name level-1

 description Predefined level-1 role

#

role name level-2

 description Predefined level-2 role

#

role name level-3

 description Predefined level-3 role

#

role name level-4

 description Predefined level-4 role

#

role name level-5

 description Predefined level-5 role

#

role name level-6

 description Predefined level-6 role

#

role name level-7

 description Predefined level-7 role

#

role name level-8

 description Predefined level-8 role

#

role name level-9

 description Predefined level-9 role

#

role name level-10

 description Predefined level-10 role

#

role name level-11

 description Predefined level-11 role

#

role name level-12

 description Predefined level-12 role

#

role name level-13

 description Predefined level-13 role

#

role name level-14

 description Predefined level-14 role

#

user-group system

#

return
