问

2540H AC 广播组播高

2020-11-17提问
  • 1关注
  • 2收藏，3686浏览
guanzhehu
guanzhehu 零段
粉丝：0人 关注：0人

问题描述：

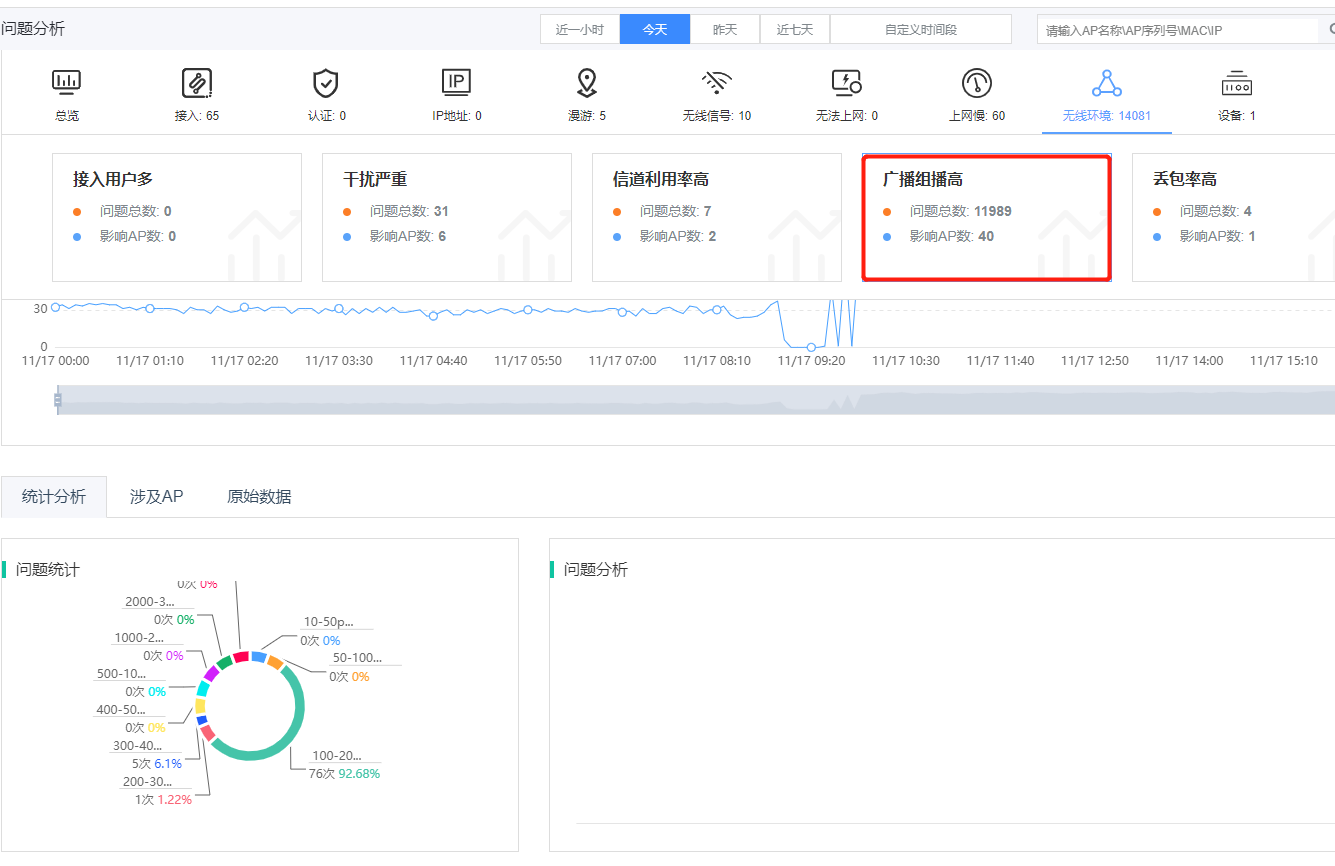

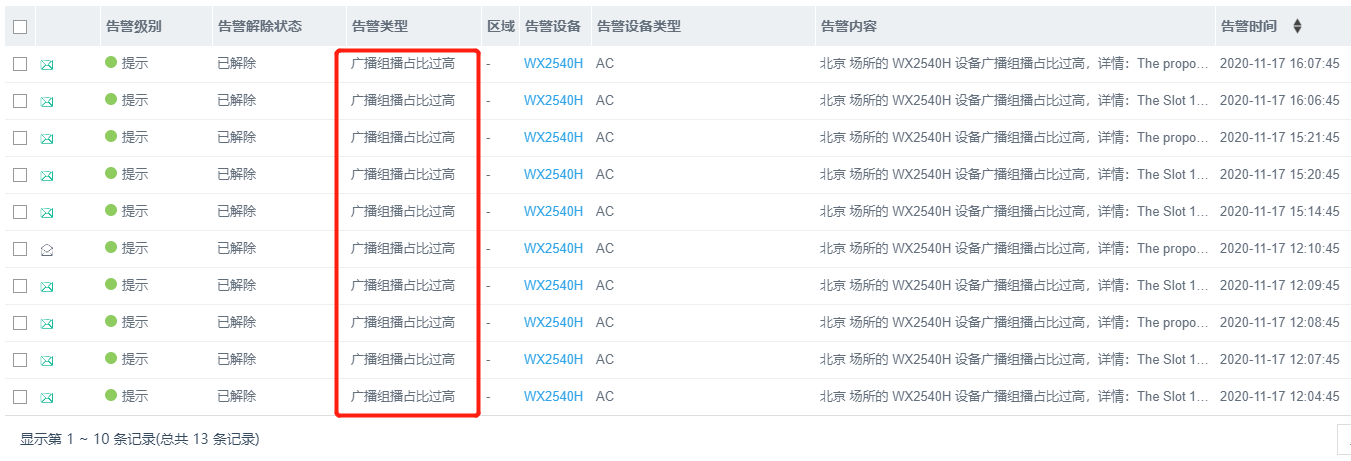

2540H AC 旁挂，本地转发，一直提示广播组播占比过高。




组网及组网描述：

AC 配置如下


  1. #
  2. version 7.1.064, Release 5435P02
  3. #
  4. sysname H3C
  5. #
  6. clock timezone Beijing add 08:00:00
  7. clock protocol none
  8. #
  9. wlan global-configuration
  10. region-code-lock enable
  11. nas-id cm-0-1296872-210235A1JMC193000222
  12. #
  13. telnet server enable
  14. #
  15. dns server 202.106.0.20
  16. #
  17. lldp global enable
  18. #
  19. password-recovery enable
  20. #
  21. vlan 1
  22. #
  23. vlan 2 to 100
  24. #
  25. wlan service-template pzoom
  26. ssid PZOOM
  27. vlan 88
  28. client forwarding-location ap vlan 88
  29. quick-association enable
  30. akm mode psk
  31. preshared-key pass-phrase cipher $c$3$5UhJaMo7VJpKIRopewtfqYGTCoC79EzXcTf7IA==
  32. cipher-suite ccmp
  33. cipher-suite tkip
  34. security-ie rsn
  35. security-ie wpa
  36. ft enable
  37. ft method over-the-ds
  38. client-rate-limit inbound mode static cir 12000
  39. client-rate-limit outbound mode static cir 12000
  40. service-template enable
  41. #
  42. wlan service-template pzoom-guest
  43. ssid PZOOM-GUEST
  44. vlan 88
  45. client forwarding-location ap vlan 88
  46. akm mode psk
  47. preshared-key pass-phrase cipher $c$3$47OBJHFWEIhLgywK8cGJw/ytcBpBQER4B0BB
  48. cipher-suite ccmp
  49. cipher-suite tkip
  50. security-ie rsn
  51. security-ie wpa
  52. client-rate-limit inbound mode static cir 2000
  53. client-rate-limit outbound mode static cir 2000
  54. service-template enable
  55. #
  56. interface NULL0
  57. #
  58. interface Vlan-interface1
  59. ip address 192.168.0.100 255.255.255.0
  60. #
  61. interface Vlan-interface40
  62. ip address 172.16.40.253 255.255.255.0
  63. #
  64. interface GigabitEthernet1/0/5
  65. port link-mode route
  66. #
  67. interface GigabitEthernet1/0/6
  68. port link-mode route
  69. #
  70. interface GigabitEthernet1/0/1
  71. port link-mode bridge
  72. port link-type trunk
  73. port trunk permit vlan all
  74. #
  75. interface GigabitEthernet1/0/2
  76. port link-mode bridge
  77. #
  78. interface GigabitEthernet1/0/3
  79. port link-mode bridge
  80. #
  81. interface GigabitEthernet1/0/4
  82. port link-mode bridge
  83. #
  84. scheduler logfile size 16
  85. #
  86. line class console
  87. user-role network-admin
  88. #
  89. line class vty
  90. user-role network-operator
  91. #
  92. line con 0
  93. user-role network-admin
  94. #
  95. line vty 0 31
  96. authentication-mode scheme
  97. user-role network-operator
  98. #
  99. ip route-static 0.0.0.0 0 172.16.40.10
  100. #
  101. undo info-center logfile enable
  102. #
  103. domain system
  104. #
  105. domain default enable system
  106. #
  107. role name level-0
  108. description Predefined level-0 role
  109. #
  110. role name level-1
  111. description Predefined level-1 role
  112. #
  113. role name level-2
  114. description Predefined level-2 role
  115. #
  116. role name level-3
  117. description Predefined level-3 role
  118. #
  119. role name level-4
  120. description Predefined level-4 role
  121. #
  122. role name level-5
  123. description Predefined level-5 role
  124. #
  125. role name level-6
  126. description Predefined level-6 role
  127. #
  128. role name level-7
  129. description Predefined level-7 role
  130. #
  131. role name level-8
  132. description Predefined level-8 role
  133. #
  134. role name level-9
  135. description Predefined level-9 role
  136. #
  137. role name level-10
  138. description Predefined level-10 role
  139. #
  140. role name level-11
  141. description Predefined level-11 role
  142. #
  143. role name level-12
  144. description Predefined level-12 role
  145. #
  146. role name level-13
  147. description Predefined level-13 role
  148. #
  149. role name level-14
  150. description Predefined level-14 role
  151. #
  152. user-group system
  153. #
  154. local-user admin class manage
  155. password hash $h$6$JcmPXtoGJ//I0mCT$fR5PM/yJE6rzdfrYqjfuz7zezHTMPyufUY3/NtQLnt2AWkuNLuonAYS1FfXEvl3TvCmF4yTahG4vqSImLtRbMQ==
  156. service-type telnet http https
  157. authorization-attribute user-role network-admin
  158. #
  159. ip http enable
  160. ip https enable
  161. #
  162. wlan auto-ap enable
  163. wlan auto-persistent enable
  164. #
  165. wlan ap-group default-group
  166. vlan 1
  167. broadcast-probe reply disable
  168. ap-model WA4330-ACN
  169.   map-configuration flash:/apcfg.txt
  170.   radio 1
  171.   max-power 10
  172.   rate mandatory 12 24
  173.   rate supported 18 36 48 54
  174.   rate disabled 6 9
  175.   radio enable
  176.   rrm
  177.     calibrate-channel self-decisive enable
  178.   radio 2
  179.   max-power 10
  180.   rate mandatory 12 24
  181.   rate supported 18 36 48 54
  182.   rate disabled 6 9
  183.   radio enable
  184.   rrm
  185.     calibrate-channel self-decisive enable
  186.   radio 3
  187.   max-power 10
  188.   rate mandatory 11
  189.   rate supported 12 18 24 36 48 54
  190.   rate disabled 1 2 5.5 6 9
  191.   radio enable
  192.   rrm
  193.     calibrate-channel self-decisive enable
  194.   gigabitethernet 1
  195.   gigabitethernet 2
  196. ap-model WA5320-SI
  197.   map-configuration flash:/apcfg.txt
  198.   radio 1
  199.   max-power 10
  200.   rate mandatory 12 24
  201.   rate supported 18 36 48 54
  202.   rate disabled 6 9
  203.   radio enable
  204.   radio 2
  205.   max-power 10
  206.   rate mandatory 11
  207.   rate supported 12 18 24 36 48 54
  208.   rate disabled 1 2 5.5 6 9
  209.   radio enable
  210.   gigabitethernet 1
  211. ap-model WA5530-SI
  212.   map-configuration flash:/apcfg.txt
  213.   radio 1
  214.   max-power 10
  215.   rate mandatory 12 24
  216.   rate supported 18 36 48 54
  217.   rate disabled 6 9
  218.   radio enable
  219.   radio 2
  220.   max-power 10
  221.   rate mandatory 12 24
  222.   rate supported 18 36 48 54
  223.   rate disabled 6 9
  224.   radio enable
  225.   radio 3
  226.   max-power 10
  227.   rate mandatory 11
  228.   rate supported 12 18 24 36 48 54
  229.   rate disabled 1 2 5.5 6 9
  230.   radio enable
  231.   gigabitethernet 1
  232.   gigabitethernet 2
  233. ap-model WA6320H-LI
  234.   map-configuration flash:/apcfg.txt
  235.   radio 1
  236.   rate mandatory 12 24
  237.   rate supported 18 36 48 54
  238.   rate disabled 6 9
  239.   radio enable
  240.   radio 2
  241.   rate mandatory 11
  242.   rate supported 12 18 24 36 48 54
  243.   rate disabled 1 2 5.5 6 9
  244.   radio enable
  245.   gigabitethernet 1
  246.   gigabitethernet 2
  247.   gigabitethernet 3
  248.   gigabitethernet 4
  249.   gigabitethernet 5
  250. #
  251. wlan ap 1F-01 model WA4330-ACN
  252. serial-id 210235A1K6C18B000482
  253. description 3-11
  254. vlan 1
  255. radio 1
  256.   service-template pzoom
  257.   service-template pzoom-guest
  258. radio 2
  259.   service-template pzoom
  260.   service-template pzoom-guest
  261. radio 3
  262.   service-template pzoom
  263.   service-template pzoom-guest
  264. gigabitethernet 1
  265. gigabitethernet 2
  266. #
  267. wlan ap 1F-02 model WA5530-SI
  268. serial-id 219801A1BW819BE00GGS
  269. vlan 1
  270. radio 1
  271.   service-template pzoom
  272.   service-template pzoom-guest
  273. radio 2
  274.   service-template pzoom
  275.   service-template pzoom-guest
  276. radio 3
  277.   radio enable
  278.   service-template pzoom
  279.   service-template pzoom-guest
  280. gigabitethernet 1
  281. gigabitethernet 2
  282. #
  283. wlan ap 1F-03 model WA4330-ACN
  284. serial-id 210235A1K6C18B000624
  285. description 3-3
  286. vlan 1
  287. radio 1
  288.   service-template pzoom
  289.   service-template pzoom-guest
  290. radio 2
  291.   service-template pzoom
  292.   service-template pzoom-guest
  293. radio 3
  294.   radio disable
  295.   service-template pzoom
  296.   service-template pzoom-guest
  297. gigabitethernet 1
  298. gigabitethernet 2
  299. #
  300. wlan ap 1F-04 model WA4330-ACN
  301. serial-id 210235A1K6C18B000145
  302. vlan 1
  303. radio 1
  304.   service-template pzoom
  305.   service-template pzoom-guest
  306. radio 2
  307.   service-template pzoom
  308.   service-template pzoom-guest
  309. radio 3
  310.   radio disable
  311.   service-template pzoom
  312.   service-template pzoom-guest
  313. gigabitethernet 1
  314. gigabitethernet 2
  315. #
  316. wlan ap 1F-05 model WA4330-ACN
  317. serial-id 210235A1K6C18B000218
  318. description 2-3
  319. vlan 1
  320. radio 1
  321.   service-template pzoom
  322.   service-template pzoom-guest
  323. radio 2
  324.   service-template pzoom
  325.   service-template pzoom-guest
  326. radio 3
  327.   radio disable
  328.   service-template pzoom
  329.   service-template pzoom-guest
  330. gigabitethernet 1
  331. gigabitethernet 2
  332. #
  333. wlan ap 2F-01 model WA4330-ACN
  334. serial-id 210235A1K6C18B000148
  335. description 2-10
  336. vlan 1
  337. radio 1
  338.   service-template pzoom
  339.   service-template pzoom-guest
  340. radio 2
  341.   service-template pzoom
  342.   service-template pzoom-guest
  343. radio 3
  344.   radio disable
  345.   service-template pzoom
  346.   service-template pzoom-guest
  347. gigabitethernet 1
  348. gigabitethernet 2
  349. #
  350. wlan ap 2F-02 model WA5530-SI
  351. serial-id 219801A1BW819CE0008X
  352. vlan 1
  353. radio 1
  354.   radio enable
  355.   service-template pzoom
  356.   service-template pzoom-guest
  357. radio 2
  358.   radio enable
  359.   service-template pzoom
  360.   service-template pzoom-guest
  361. radio 3
  362.   service-template pzoom
  363.   service-template pzoom-guest
  364. gigabitethernet 1
  365. gigabitethernet 2
  366. #
  367. wlan ap 2F-03 model WA5530-SI
  368. serial-id 219801A1BW819CE000FY
  369. vlan 1
  370. radio 1
  371.   radio enable
  372.   service-template pzoom
  373.   service-template pzoom-guest
  374. radio 2
  375.   radio enable
  376.   service-template pzoom
  377.   service-template pzoom-guest
  378. radio 3
  379.   service-template pzoom
  380.   service-template pzoom-guest
  381. gigabitethernet 1
  382. gigabitethernet 2
  383. #
  384. wlan ap 2F-04 model WA5530-SI
  385. serial-id 219801A1BW819CE000DK
  386. vlan 1
  387. radio 1
  388.   channel 44
  389.   radio enable
  390.   channel band-width 40
  391.   service-template pzoom
  392.   service-template pzoom-guest
  393. radio 2
  394.   channel 157
  395.   radio enable
  396.   service-template pzoom
  397.   service-template pzoom-guest
  398. radio 3
  399.   radio disable
  400.   service-template pzoom
  401.   service-template pzoom-guest
  402. gigabitethernet 1
  403. gigabitethernet 2
  404. #
  405. wlan ap 2F-05 model WA5530-SI
  406. serial-id 219801A1BW819CE000FS
  407. vlan 1
  408. radio 1
  409.   radio enable
  410.   service-template pzoom
  411.   service-template pzoom-guest
  412. radio 2
  413.   radio enable
  414.   service-template pzoom
  415.   service-template pzoom-guest
  416. radio 3
  417.   service-template pzoom
  418.   service-template pzoom-guest
  419. gigabitethernet 1
  420. gigabitethernet 2
  421. #
  422. wlan ap 2F-06 model WA4330-ACN
  423. serial-id 210235A1K6C18B000478
  424. description 3-8
  425. vlan 1
  426. radio 1
  427.   service-template pzoom
  428.   service-template pzoom-guest
  429. radio 2
  430.   service-template pzoom
  431.   service-template pzoom-guest
  432. radio 3
  433.   radio disable
  434.   service-template pzoom
  435.   service-template pzoom-guest
  436. gigabitethernet 1
  437. gigabitethernet 2
  438. #
  439. wlan ap 2F-07 model WA5530-SI
  440. serial-id 219801A1BW819CE000G0
  441. vlan 1
  442. radio 1
  443.   channel 36
  444.   radio enable
  445.   channel band-width 40
  446.   service-template pzoom
  447.   service-template pzoom-guest
  448. radio 2
  449.   type dot11ac
  450.   channel 149
  451.   radio enable
  452.   channel band-width 40
  453.   dot11ac support maximum-nss 8
  454.   service-template pzoom
  455.   service-template pzoom-guest
  456. radio 3
  457.   service-template pzoom
  458.   service-template pzoom-guest
  459. gigabitethernet 1
  460. gigabitethernet 2
  461. #
  462. wlan ap 3F-01 model WA4330-ACN
  463. serial-id 210235A1K6C18B000723
  464. vlan 1
  465. radio 1
  466.   service-template pzoom
  467.   service-template pzoom-guest
  468. radio 2
  469.   service-template pzoom
  470.   service-template pzoom-guest
  471. radio 3
  472.   radio disable
  473.   service-template pzoom
  474.   service-template pzoom-guest
  475. gigabitethernet 1
  476. gigabitethernet 2
  477. #
  478. wlan ap 3F-02 model WA5530-SI
  479. serial-id 219801A1BW819BE00GH6
  480. vlan 1
  481. radio 1
  482.   service-template pzoom
  483.   service-template pzoom-guest
  484. radio 2
  485.   service-template pzoom
  486.   service-template pzoom-guest
  487. radio 3
  488.   service-template pzoom
  489.   service-template pzoom-guest
  490. gigabitethernet 1
  491. gigabitethernet 2
  492. #
  493. wlan ap 3F-03 model WA5530-SI
  494. serial-id 219801A1BW819BE00GH5
  495. vlan 1
  496. radio 1
  497.   service-template pzoom
  498.   service-template pzoom-guest
  499. radio 2
  500.   service-template pzoom
  501.   service-template pzoom-guest
  502. radio 3
  503.   service-template pzoom
  504.   service-template pzoom-guest
  505. gigabitethernet 1
  506. gigabitethernet 2
  507. #
  508. wlan ap 3F-04 model WA5530-SI
  509. serial-id 219801A1BW819BE00G9R
  510. vlan 1
  511. radio 1
  512.   service-template pzoom
  513.   service-template pzoom-guest
  514. radio 2
  515.   service-template pzoom
  516.   service-template pzoom-guest
  517. radio 3
  518.   service-template pzoom
  519.   service-template pzoom-guest
  520. gigabitethernet 1
  521. gigabitethernet 2
  522. #
  523. wlan ap 3F-05 model WA4330-ACN
  524. serial-id 210235A1K6C18B000330
  525. vlan 1
  526. radio 1
  527.   service-template pzoom
  528.   service-template pzoom-guest
  529. radio 2
  530.   service-template pzoom
  531.   service-template pzoom-guest
  532. radio 3
  533.   service-template pzoom
  534.   service-template pzoom-guest
  535. gigabitethernet 1
  536. gigabitethernet 2
  537. #
  538. wlan ap 3F-06 model WA4330-ACN
  539. serial-id 210235A1K6C195000973
  540. vlan 1
  541. radio 1
  542.   service-template pzoom
  543.   service-template pzoom-guest
  544. radio 2
  545.   service-template pzoom
  546.   service-template pzoom-guest
  547. radio 3
  548.   radio disable
  549.   service-template pzoom
  550.   service-template pzoom-guest
  551. gigabitethernet 1
  552. gigabitethernet 2
  553. #
  554. wlan ap 3F-07 model WA4330-ACN
  555. serial-id 210235A1K6C18B000118
  556. description 2-11
  557. vlan 1
  558. radio 1
  559.   service-template pzoom
  560.   service-template pzoom-guest
  561. radio 2
  562.   service-template pzoom
  563.   service-template pzoom-guest
  564. radio 3
  565.   radio disable
  566.   service-template pzoom
  567.   service-template pzoom-guest
  568. gigabitethernet 1
  569. gigabitethernet 2
  570. #
  571. wlan ap 3F-08 model WA5530-SI
  572. serial-id 219801A1BW819BE00GHP
  573. vlan 1
  574. radio 1
  575.   service-template pzoom
  576.   service-template pzoom-guest
  577. radio 2
  578.   service-template pzoom
  579.   service-template pzoom-guest
  580. radio 3
  581.   service-template pzoom
  582.   service-template pzoom-guest
  583. gigabitethernet 1
  584. gigabitethernet 2
  585. #
  586. wlan ap 3F-09 model WA4330-ACN
  587. serial-id 210235A1K6C18B000443
  588. description 3-2
  589. vlan 1
  590. radio 1
  591.   service-template pzoom
  592.   service-template pzoom-guest
  593. radio 2
  594.   service-template pzoom
  595.   service-template pzoom-guest
  596. radio 3
  597.   radio disable
  598.   service-template pzoom
  599.   service-template pzoom-guest
  600. gigabitethernet 1
  601. gigabitethernet 2
  602. #
  603. wlan ap 3F-10 model WA5530-SI
  604. serial-id 219801A1BW819BE00GH1
  605. vlan 1
  606. radio 1
  607.   service-template pzoom
  608.   service-template pzoom-guest
  609. radio 2
  610.   service-template pzoom
  611.   service-template pzoom-guest
  612. radio 3
  613.   service-template pzoom
  614.   service-template pzoom-guest
  615. gigabitethernet 1
  616. gigabitethernet 2
  617. #
  618. wlan ap 3F-11 model WA5530-SI
  619. serial-id 219801A1BW819BE00FWF
  620. vlan 1
  621. radio 1
  622.   service-template pzoom
  623.   service-template pzoom-guest
  624. radio 2
  625.   service-template pzoom
  626.   service-template pzoom-guest
  627. radio 3
  628.   service-template pzoom
  629.   service-template pzoom-guest
  630. gigabitethernet 1
  631. gigabitethernet 2
  632. #
  633. wlan ap 3F-12 model WA4330-ACN
  634. serial-id 210235A1K6C18B000698
  635. description 2-4
  636. vlan 1
  637. radio 1
  638.   service-template pzoom
  639.   service-template pzoom-guest
  640. radio 2
  641.   service-template pzoom
  642.   service-template pzoom-guest
  643. radio 3
  644.   radio disable
  645.   service-template pzoom
  646.   service-template pzoom-guest
  647. gigabitethernet 1
  648. gigabitethernet 2
  649. #
  650. wlan ap 3F-13 model WA5530-SI
  651. serial-id 219801A1BW819BE00G6M
  652. vlan 1
  653. radio 1
  654.   service-template pzoom
  655.   service-template pzoom-guest
  656. radio 2
  657.   service-template pzoom
  658.   service-template pzoom-guest
  659. radio 3
  660.   service-template pzoom
  661.   service-template pzoom-guest
  662. gigabitethernet 1
  663. gigabitethernet 2
  664. #
  665. wlan ap 3F-14 model WA4330-ACN
  666. serial-id 210235A1K6C18B000434
  667. description 3-7
  668. vlan 1
  669. radio 1
  670.   service-template pzoom
  671.   service-template pzoom-guest
  672. radio 2
  673.   service-template pzoom
  674.   service-template pzoom-guest
  675. radio 3
  676.   radio disable
  677.   service-template pzoom
  678.   service-template pzoom-guest
  679. gigabitethernet 1
  680. gigabitethernet 2
  681. #
  682. wlan ap 3F-15 model WA5530-SI
  683. serial-id 219801A1BW819BE00GH0
  684. vlan 1
  685. radio 1
  686.   service-template pzoom
  687.   service-template pzoom-guest
  688. radio 2
  689.   service-template pzoom
  690.   service-template pzoom-guest
  691. radio 3
  692.   service-template pzoom
  693.   service-template pzoom-guest
  694. gigabitethernet 1
  695. gigabitethernet 2
  696. #
  697. wlan ap 3F-16 model WA4330-ACN
  698. serial-id 210235A1K6C18B000373
  699. vlan 1
  700. radio 1
  701.   service-template pzoom
  702.   service-template pzoom-guest
  703. radio 2
  704.   service-template pzoom
  705.   service-template pzoom-guest
  706. radio 3
  707.   radio disable
  708.   service-template pzoom
  709.   service-template pzoom-guest
  710. gigabitethernet 1
  711. gigabitethernet 2
  712. #
  713. wlan ap 3F-17 model WA4330-ACN
  714. serial-id 210235A1K6C191000121
  715. description 2-9
  716. vlan 1
  717. radio 1
  718.   service-template pzoom
  719.   service-template pzoom-guest
  720. radio 2
  721.   service-template pzoom
  722.   service-template pzoom-guest
  723. radio 3
  724.   radio disable
  725.   service-template pzoom
  726.   service-template pzoom-guest
  727. gigabitethernet 1
  728. gigabitethernet 2
  729. #
  730. wlan ap 3F-18 model WA4330-ACN
  731. serial-id 210235A1K6C191000139
  732. description 3-10
  733. vlan 1
  734. radio 1
  735.   service-template pzoom
  736.   service-template pzoom-guest
  737. radio 2
  738.   service-template pzoom
  739.   service-template pzoom-guest
  740. radio 3
  741.   radio disable
  742.   service-template pzoom
  743.   service-template pzoom-guest
  744. gigabitethernet 1
  745. gigabitethernet 2
  746. #
  747. wlan ap 3F-19 model WA5320-SI
  748. serial-id 219801A1B38199E006M6
  749. vlan 1
  750. radio 1
  751.   radio enable
  752.   service-template pzoom
  753.   service-template pzoom-guest
  754. radio 2
  755.   radio disable
  756.   service-template pzoom
  757.   service-template pzoom-guest
  758. gigabitethernet 1
  759. #
  760. wlan ap 3F-20 model WA5320-SI
  761. serial-id 219801A1B38199E0062Y
  762. vlan 1
  763. radio 1
  764.   radio enable
  765.   service-template pzoom
  766.   service-template pzoom-guest
  767. radio 2
  768.   radio enable
  769.   service-template pzoom
  770.   service-template pzoom-guest
  771. gigabitethernet 1
  772. #
  773. wlan ap 3F-21 model WA5530-SI
  774. serial-id 219801A1BW819BE00GH3
  775. vlan 1
  776. radio 1
  777.   service-template pzoom
  778.   service-template pzoom-guest
  779. radio 2
  780.   service-template pzoom
  781.   service-template pzoom-guest
  782. radio 3
  783.   service-template pzoom
  784.   service-template pzoom-guest
  785. gigabitethernet 1
  786. gigabitethernet 2
  787. #
  788. wlan ap 3F-22 model WA4330-ACN
  789. serial-id 210235A1K6C18B000061
  790. description 3-1
  791. vlan 1
  792. radio 1
  793.   service-template pzoom
  794.   service-template pzoom-guest
  795. radio 2
  796.   service-template pzoom
  797.   service-template pzoom-guest
  798. radio 3
  799.   service-template pzoom
  800.   service-template pzoom-guest
  801. gigabitethernet 1
  802. gigabitethernet 2
  803. #
  804. wlan ap 3F-23 model WA4330-ACN
  805. serial-id 210235A1K6C191000077
  806. description 3-5
  807. vlan 1
  808. radio 1
  809.   service-template pzoom
  810.   service-template pzoom-guest
  811. radio 2
  812.   service-template pzoom
  813.   service-template pzoom-guest
  814. radio 3
  815.   radio enable
  816.   service-template pzoom
  817.   service-template pzoom-guest
  818. gigabitethernet 1
  819. gigabitethernet 2
  820. #
  821. wlan ap 3F-24 model WA4330-ACN
  822. serial-id 210235A1K6C191000141
  823. description 2-7
  824. vlan 1
  825. radio 1
  826.   service-template pzoom
  827.   service-template pzoom-guest
  828. radio 2
  829.   service-template pzoom
  830.   service-template pzoom-guest
  831. radio 3
  832.   radio enable
  833.   service-template pzoom
  834.   service-template pzoom-guest
  835. gigabitethernet 1
  836. gigabitethernet 2
  837. #
  838. wlan ap 3F-25 model WA6320H-LI
  839. serial-id 219801A2BU8204E00035
  840. vlan 1
  841. radio 1
  842.   service-template pzoom
  843.   service-template pzoom-guest
  844. radio 2
  845.   service-template pzoom
  846.   service-template pzoom-guest
  847. gigabitethernet 1
  848. gigabitethernet 2
  849. gigabitethernet 3
  850. gigabitethernet 4
  851. gigabitethernet 5
  852. #
  853. wlan ap B1-01 model WA4330-ACN
  854. serial-id 210235A1K6C18B000365
  855. description 3-9
  856. vlan 1
  857. radio 1
  858.   service-template pzoom
  859.   service-template pzoom-guest
  860. radio 2
  861.   max-power 13
  862.   power-lock enable
  863.   service-template pzoom
  864.   service-template pzoom-guest
  865. radio 3
  866.   radio enable
  867.   service-template pzoom
  868.   service-template pzoom-guest
  869. gigabitethernet 1
  870. gigabitethernet 2
  871. #
  872. wlan ap B1-02 model WA4330-ACN
  873. serial-id 210235A1K6C18B000068
  874. description 3-4
  875. vlan 1
  876. radio 1
  877.   service-template pzoom
  878.   service-template pzoom-guest
  879. radio 2
  880.   service-template pzoom
  881.   service-template pzoom-guest
  882. radio 3
  883.   radio disable
  884.   service-template pzoom
  885.   service-template pzoom-guest
  886. gigabitethernet 1
  887. gigabitethernet 2
  888. #
  889. wlan ap B1-03 model WA4330-ACN
  890. serial-id 210235A1K6C18B000465
  891. description 2-6
  892. vlan 1
  893. radio 1
  894.   service-template pzoom
  895.   service-template pzoom-guest
  896. radio 2
  897.   service-template pzoom
  898.   service-template pzoom-guest
  899. radio 3
  900.   radio disable
  901.   service-template pzoom
  902.   service-template pzoom-guest
  903. gigabitethernet 1
  904. gigabitethernet 2
  905. #
  906. cloud-management server domain oasis.h3c.com
  907. #
  908. return


核心配置如下：

  1. #
  2. sysname H3C
  3. #
  4. telnet server enable
  5. #
  6. irf mac-address persistent timer
  7. irf auto-update enable
  8. undo irf link-delay
  9. irf member 1 priority 1
  10. #
  11. dhcp enable
  12. dhcp server forbidden-ip 192.168.10.1 192.168.10.100
  13. #
  14. lldp global enable
  15. #
  16. fan prefer-direction slot 1 port-to-power
  17. password-recovery enable
  18. #
  19. vlan 1
  20. #
  21. vlan 10
  22. #
  23. vlan 20
  24. #
  25. vlan 30
  26. #
  27. vlan 40
  28. #
  29. vlan 50
  30. #
  31. vlan 60
  32. #
  33. vlan 70
  34. #
  35. vlan 80
  36. #
  37. vlan 88
  38. #
  39. vlan 100
  40. #
  41. vlan 110
  42. #
  43. vlan 120
  44. #
  45. vlan 130
  46. #
  47. vlan 140
  48. #
  49. vlan 200
  50. #
  51. vlan 300
  52. #
  53. stp global enable
  54. #
  55. dhcp server ip-pool 10
  56. gateway-list 10.140.10.10
  57. network 10.140.10.0 mask 255.255.255.0
  58. dns-list 202.106.0.20 114.114.114.114
  59. forbidden-ip 10.140.10.10
  60. #
  61. dhcp server ip-pool 20
  62. gateway-list 10.140.20.10
  63. network 10.140.20.0 mask 255.255.255.0
  64. dns-list 202.106.0.20 114.114.114.114
  65. forbidden-ip 10.140.20.10
  66. #
  67. dhcp server ip-pool 30
  68. gateway-list 10.140.30.10
  69. network 10.140.30.0 mask 255.255.255.0
  70. dns-list 202.106.0.20 114.114.114.114
  71. forbidden-ip 10.140.30.10
  72. #
  73. dhcp server ip-pool 40
  74. gateway-list 172.16.40.10
  75. network 172.16.40.0 mask 255.255.255.0
  76. #
  77. dhcp server ip-pool 50
  78. gateway-list 10.140.50.10
  79. network 10.140.50.0 mask 255.255.255.0
  80. dns-list 202.106.0.20 114.114.114.114
  81. forbidden-ip 10.140.50.10
  82. #
  83. dhcp server ip-pool 60
  84. gateway-list 10.140.60.10
  85. network 10.140.60.0 mask 255.255.255.0
  86. dns-list 202.106.0.20 114.114.114.114
  87. forbidden-ip 10.140.60.10
  88. #
  89. dhcp server ip-pool 70
  90. gateway-list 10.140.70.10
  91. network 10.140.70.0 mask 255.255.255.0
  92. dns-list 202.106.0.20 114.114.114.114
  93. forbidden-ip 10.140.70.10
  94. #
  95. dhcp server ip-pool 80
  96. gateway-list 10.140.80.10
  97. network 10.140.80.0 mask 255.255.255.0
  98. dns-list 202.106.0.20 114.114.114.114
  99. forbidden-ip 10.140.80.10
  100. #
  101. dhcp server ip-pool 88
  102. gateway-list 10.140.88.10
  103. network 10.140.88.0 mask 255.255.252.0
  104. dns-list 202.106.196.115 202.106.0.20
  105. expired day 0 hour 3
  106. #
  107. dhcp server ip-pool 100
  108. gateway-list 10.140.100.10
  109. network 10.140.100.0 mask 255.255.255.0
  110. dns-list 202.106.0.20 114.114.114.114
  111. forbidden-ip 10.140.100.10
  112. #
  113. dhcp server ip-pool 140
  114. gateway-list 10.140.140.10
  115. network 10.140.140.0 mask 255.255.255.0
  116. dns-list 202.106.0.20 114.114.114.114
  117. forbidden-ip 10.140.40.10
  118. forbidden-ip 10.140.140.10
  119. #
  120. policy-based-route adsl permit node 1
  121. if-match acl 2000
  122. apply next-hop 10.10.11.1 direct
  123. #
  124. interface NULL0
  125. #
  126. interface Vlan-interface10
  127. ip address 10.140.10.10 255.255.255.0
  128. #
  129. interface Vlan-interface20
  130. ip address 10.140.20.10 255.255.255.0
  131. #
  132. interface Vlan-interface30
  133. ip address 10.140.30.10 255.255.255.0
  134. #
  135. interface Vlan-interface40
  136. ip address 172.16.40.10 255.255.255.0
  137. ip policy-based-route adsl
  138. #
  139. interface Vlan-interface50
  140. ip address 10.140.50.10 255.255.255.0
  141. #
  142. interface Vlan-interface60
  143. ip address 10.140.60.10 255.255.255.0
  144. #
  145. interface Vlan-interface70
  146. ip address 10.140.70.10 255.255.255.0
  147. #
  148. interface Vlan-interface80
  149. ip address 10.140.80.10 255.255.255.0
  150. #
  151. interface Vlan-interface88
  152. ip address 10.140.88.10 255.255.252.0
  153. ip policy-based-route adsl
  154. #
  155. interface Vlan-interface100
  156. ip address 10.140.100.10 255.255.255.0
  157. #
  158. interface Vlan-interface110
  159. ip address 10.140.110.10 255.255.255.0
  160. #
  161. interface Vlan-interface120
  162. ip address 10.140.120.10 255.255.255.0
  163. #
  164. interface Vlan-interface130
  165. ip address 10.110.20.10 255.255.255.0
  166. #
  167. interface Vlan-interface140
  168. ip address 10.140.140.10 255.255.255.0
  169. ip policy-based-route adsl
  170. #
  171. interface Vlan-interface200
  172. ip address 10.10.10.2 255.255.255.0
  173. #
  174. interface Vlan-interface300
  175. ip address 10.10.11.2 255.255.255.0
  176. #
  177. interface GigabitEthernet1/0/1
  178. port link-mode bridge
  179. port access vlan 200
  180. #
  181. interface GigabitEthernet1/0/2
  182. port link-mode bridge
  183. port access vlan 300
  184. #
  185. interface GigabitEthernet1/0/3
  186. port link-mode bridge
  187. #
  188. interface GigabitEthernet1/0/4
  189. port link-mode bridge
  190. #
  191. interface GigabitEthernet1/0/5
  192. port link-mode bridge
  193. port link-type trunk
  194. undo port trunk permit vlan 1
  195. port trunk permit vlan 40 88
  196. #
  197. interface GigabitEthernet1/0/6
  198. port link-mode bridge
  199. port link-type trunk
  200. undo port trunk permit vlan 1
  201. port trunk permit vlan 40 88
  202. #
  203. interface GigabitEthernet1/0/7
  204. port link-mode bridge
  205. port link-type trunk
  206. undo port trunk permit vlan 1
  207. port trunk permit vlan 40 88
  208. #
  209. interface GigabitEthernet1/0/8
  210. port link-mode bridge
  211. #
  212. interface GigabitEthernet1/0/9
  213. port link-mode bridge
  214. #
  215. interface GigabitEthernet1/0/10
  216. port link-mode bridge
  217. #
  218. interface GigabitEthernet1/0/11
  219. port link-mode bridge
  220. #
  221. interface GigabitEthernet1/0/12
  222. port link-mode bridge
  223. #
  224. interface GigabitEthernet1/0/13
  225. port link-mode bridge
  226. port link-type trunk
  227. port trunk permit vlan all
  228. #
  229. interface GigabitEthernet1/0/14
  230. port link-mode bridge
  231. port link-type trunk
  232. port trunk permit vlan all
  233. #
  234. interface GigabitEthernet1/0/15
  235. port link-mode bridge
  236. port link-type trunk
  237. port trunk permit vlan all
  238. #
  239. interface GigabitEthernet1/0/16
  240. port link-mode bridge
  241. port link-type trunk
  242. port trunk permit vlan all
  243. #
  244. interface GigabitEthernet1/0/17
  245. port link-mode bridge
  246. port link-type trunk
  247. port trunk permit vlan all
  248. #
  249. interface GigabitEthernet1/0/18
  250. port link-mode bridge
  251. port link-type trunk
  252. port trunk permit vlan all
  253. #
  254. interface GigabitEthernet1/0/19
  255. port link-mode bridge
  256. port link-type trunk
  257. port trunk permit vlan all
  258. #
  259. interface GigabitEthernet1/0/20
  260. port link-mode bridge
  261. port link-type trunk
  262. port trunk permit vlan all
  263. #
  264. interface GigabitEthernet1/0/21
  265. port link-mode bridge
  266. port link-type trunk
  267. port trunk permit vlan all
  268. #
  269. interface GigabitEthernet1/0/22
  270. port link-mode bridge
  271. port link-type trunk
  272. port trunk permit vlan all
  273. #
  274. interface GigabitEthernet1/0/23
  275. port link-mode bridge
  276. port link-type trunk
  277. port trunk permit vlan all
  278. #
  279. interface GigabitEthernet1/0/24
  280. port link-mode bridge
  281. port link-type trunk
  282. port trunk permit vlan all
  283. #
  284. interface M-GigabitEthernet0/0/0
  285. #
  286. interface Ten-GigabitEthernet1/0/25
  287. port link-mode bridge
  288. #
  289. interface Ten-GigabitEthernet1/0/26
  290. port link-mode bridge
  291. #
  292. interface Ten-GigabitEthernet1/0/27
  293. port link-mode bridge
  294. #
  295. interface Ten-GigabitEthernet1/0/28
  296. port link-mode bridge
  297. #
  298. scheduler logfile size 16
  299. #
  300. line class aux
  301. user-role network-admin
  302. #
  303. line class vty
  304. user-role network-operator
  305. #
  306. line aux 0
  307. user-role network-admin
  308. #
  309. line vty 0 4
  310. authentication-mode scheme
  311. user-role network-operator
  312. #
  313. line vty 5 63
  314. user-role network-operator
  315. #
  316. ip route-static 0.0.0.0 0 10.10.10.1
  317. #
  318. undo info-center enable
  319. #
  320. time-range any 00:00 to 23:59 daily
  321. #
  322. acl number 2000 name neiwang match-order auto
  323. rule 0 permit source 10.140.140.188 0 time-range any
  324. #
  325. radius scheme system
  326. user-name-format without-domain
  327. #
  328. domain system
  329. #
  330. domain default enable system
  331. #
  332. role name level-0
  333. description Predefined level-0 role
  334. #
  335. role name level-1
  336. description Predefined level-1 role
  337. #
  338. role name level-2
  339. description Predefined level-2 role
  340. #
  341. role name level-3
  342. description Predefined level-3 role
  343. #
  344. role name level-4
  345. description Predefined level-4 role
  346. #
  347. role name level-5
  348. description Predefined level-5 role
  349. #
  350. role name level-6
  351. description Predefined level-6 role
  352. #
  353. role name level-7
  354. description Predefined level-7 role
  355. #
  356. role name level-8
  357. description Predefined level-8 role
  358. #
  359. role name level-9
  360. description Predefined level-9 role
  361. #
  362. role name level-10
  363. description Predefined level-10 role
  364. #
  365. role name level-11
  366. description Predefined level-11 role
  367. #
  368. role name level-12
  369. description Predefined level-12 role
  370. #
  371. role name level-13
  372. description Predefined level-13 role
  373. #
  374. role name level-14
  375. description Predefined level-14 role
  376. #
  377. user-group system
  378. #
  379. local-user admin class manage
  380. password hash $h$6$X0gxIB6RTOc4Xn6L$bQaALAnb/JKHIyPWSWNXtX3BXmC2rqE6Xa3CO2ZjXOAOGSPFuUyHQsO2VSkrMZLGCm/dPSNTjG2Bpn7urwkg0Q==
  381. service-type telnet http https
  382. authorization-attribute user-role network-admin
  383. authorization-attribute user-role network-operator
  384. #
  385. ip http enable
  386. ip https enable
  387. #
  388. return



1 个回答
按时间 按赞数
锤哥
锤哥 七段
粉丝：22人 关注：5人

建议打400咨询一下

回复guanzhehu:

最后如何解决了呢

zhiliao_nV4kbN 发表时间：2023-02-10 更多>>

已经出了支持的时间了

guanzhehu 发表时间：2020-11-17
回复guanzhehu:

最后如何解决了呢

zhiliao_nV4kbN 发表时间：2023-02-10

编辑答案

你正在编辑答案

如果你要对问题或其他回答进行点评或询问，请使用评论功能。

✖

分享扩散:

➤

提出建议

✖

    +
网站相关
关于我们
服务条款
隐私政策
帮助中心
经验与权限
积分规则
联系我们
联系我们
建议反馈
常用链接
标杆的神器下载
关注我们
H3C官网
新华三服务公众号
安仔远程运维服务
新华三商城
内容许可
除特别说明外，用户内容均可采用知识共享署名-相同方式共享3.0中国大陆许可协议进行许可

Copyright©2026新华三集团保留一切权利 当前呈现版本 NO.1

本图标版权归新华三集团所有，仅限本社区使用，切勿用做商业目的，违者必究

浙ICP备09064986号-1   浙公网安备 33010802004416号

✖

亲~登录后才可以操作哦!

确定
✖

亲~检测到您登陆的账号未在http://hclhub.h3c.com进行注册

注册后可访问此模块

跳转hclhub
✖

你的邮箱还未认证，请认证邮箱或绑定手机后进行当前操作

✖

举报

×

侵犯我的权益 >
对根叔社区有害的内容 >
辱骂、歧视、挑衅等（不友善）

侵犯我的权益

×

泄露了我的隐私 >
侵犯了我企业的权益 >
抄袭了我的内容 >
诽谤我 >
辱骂、歧视、挑衅等（不友善）
骚扰我

泄露了我的隐私

×

您好，当您发现根叔知了上有泄漏您隐私的内容时，您可以向根叔知了进行举报。 请您把以下内容通过邮件发送到pub.zhiliao@h3c.com 邮箱，我们会尽快处理。
  • 1. 您认为哪些内容泄露了您的隐私？（请在邮件中列出您举报的内容、链接地址，并给出简短的说明）
  • 2. 您是谁？（身份证明材料，可以是身份证或护照等证件）

侵犯了我企业的权益

×

您好，当您发现根叔知了上有关于您企业的造谣与诽谤、商业侵权等内容时，您可以向根叔知了进行举报。 请您把以下内容通过邮件发送到 pub.zhiliao@h3c.com 邮箱，我们会在审核后尽快给您答复。
  • 1. 您举报的内容是什么？（请在邮件中列出您举报的内容和链接地址）
  • 2. 您是谁？（身份证明材料，可以是身份证或护照等证件）
  • 3. 是哪家企业？（营业执照，单位登记证明等证件）
  • 4. 您与该企业的关系是？（您是企业法人或被授权人，需提供企业委托授权书）
我们认为知名企业应该坦然接受公众讨论，对于答案中不准确的部分，我们欢迎您以正式或非正式身份在根叔知了上进行澄清。

抄袭了我的内容

×

原文链接或出处

诽谤我

×

您好，当您发现根叔知了上有诽谤您的内容时，您可以向根叔知了进行举报。 请您把以下内容通过邮件发送到pub.zhiliao@h3c.com 邮箱，我们会尽快处理。
  • 1. 您举报的内容以及侵犯了您什么权益？（请在邮件中列出您举报的内容、链接地址，并给出简短的说明）
  • 2. 您是谁？（身份证明材料，可以是身份证或护照等证件）
我们认为知名企业应该坦然接受公众讨论，对于答案中不准确的部分，我们欢迎您以正式或非正式身份在根叔知了上进行澄清。

对根叔社区有害的内容

×

垃圾广告信息
色情、暴力、血腥等违反法律法规的内容
政治敏感
不规范转载 >
辱骂、歧视、挑衅等（不友善）
骚扰我
诱导投票

不规范转载

×

举报说明
